WHATLEY CF50 LIGHT POLE OVERVIEW
Whatley composite, fluted CF50 tapered light poles are crafted with 16 flutes and a .14-inch per foot taper. The light pole is constructed of woven fiberglass filament combined with a thermosetting resin using an advanced resin transfer process that yields a light pole with exceptional strength and durability.
Direct-embed and anchor-base CF50 light pole models are available with mounting heights ranging from 6' to 17'. The engineered-composite pole is a durable, dent-resistant structure that will not rust, rot, or decay even when subjected to frequent moisture, salt, de-icing solutions, fertilizers, and other harsh conditions.
CF50 model light poles are available with decorative Whatley Xtreme elastomeric-urethane base covers that provide enduring beauty and long-lasting performance.
Trusted and time proven, the structural integrity of Whatley products makes them an ideal choice for use in high-traffic environments, such as busy streets, boulevards, highways, parks, campuses, and on hike and bike trails.
Need a specification page? Visit the Whatley Decorative Product Selector to select your light pole and base cover.

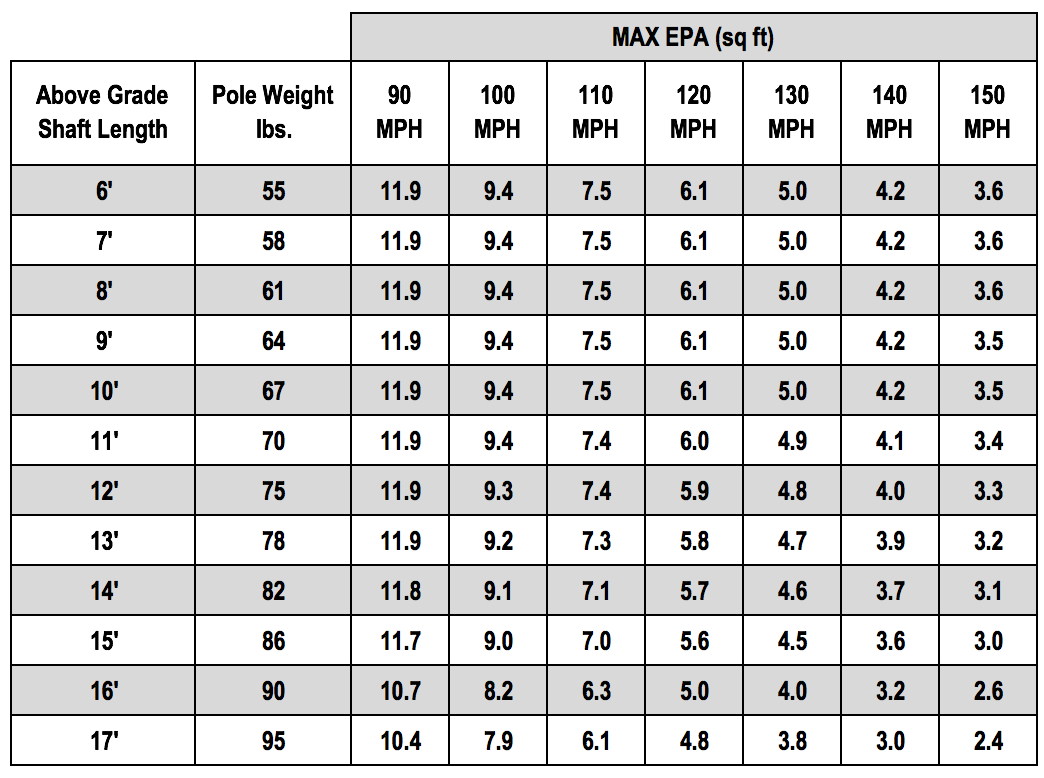

WHATLEY COMPOSITE FLUTED (CF50) LIGHT POLE SIZING CHART:
For any heights not listed or for greater wind load options, please contact Whatley. Also, for pole loads involving accessories such as banners and flower pots or having arm spans greater than 4', please contact Whatley for sizing verification.
